Model: TF-HSC-SS
Pump Type: Horizontal Split Case, Single-Stage, Double-Suction Centrifugal Pump
Nominal Size Range: 2″ to 24″
Service: Clean water and compatible industrial liquids
Installation: Horizontal
Drive: Electric motor / diesel engine / other driver on request
Configuration: Long-coupled, baseplate mounted
A typical standard water-service configuration can be:
| Component | Standard Material |
|---|---|
| Casing | Cast Iron ASTM A48 Class 35 / equivalent |
| Impeller | Bronze ASTM B584 or cast iron |
| Shaft | Stainless Steel ASTM A276 Type 420 / 410 or equivalent |
| Shaft Sleeve | Stainless Steel |
| Wear Rings | Bronze / Stainless Steel |
| Casing Rings | Bronze / Stainless Steel |
| Seal | Mechanical seal or gland packing |
| Baseplate | Fabricated Carbon Steel |
| Coupling Guard | Carbon Steel |
| Component | Material |
|---|---|
| Casing | ASTM A536 Ductile Iron |
| Impeller | Bronze / Stainless Steel / Ductile Iron |
| Shaft | Stainless Steel |
| Sleeve | Stainless Steel |
| Wear Rings | Bronze / Stainless Steel |
Available for corrosive or special services:
Depending on service:
The TF-HSC-SS series can be supplied or tested according to applicable project requirements such as:
Download the latest technical datasheet for the
TF-HSC-SS Horizontal Split Case Pump Series.
.tf-download-box {
padding: 22px;
border: 1px solid #d9d9d9;
border-radius: 8px;
background: #f8f9fb;
max-width: 700px;
}
.tf-download-box h3 {
margin-top: 0;
color: #0A2A4A;
}
.tf-download-btn {
display: inline-block;
margin-top: 10px;
padding: 12px 22px;
background: #0A2A4A;
color: #ffffff !important;
text-decoration: none;
border-radius: 5px;
font-weight: 600;
}
.tf-download-btn:hover {
background: #D62828;
color: #ffffff !important;
}

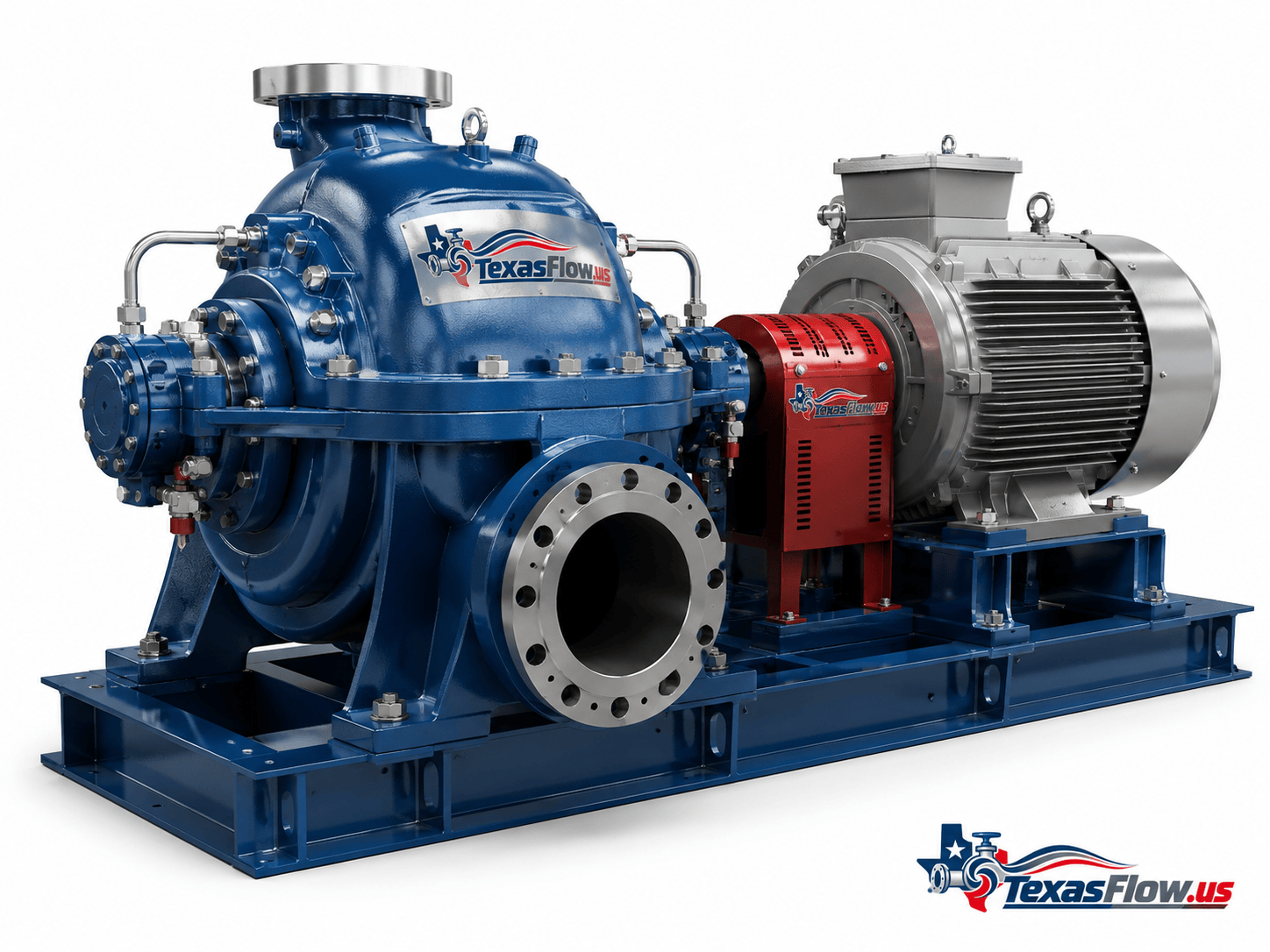

The TexasFlow TF-HSC-SS Series is a horizontal split-case, single-stage, double-suction centrifugal pump designed for high-flow water transfer and industrial service.
The horizontally split casing allows inspection and maintenance of the rotating assembly without disturbing the suction and discharge piping or removing the driver.
The double-suction impeller arrangement provides balanced hydraulic loading, reduced axial thrust, stable operation, and good efficiency over a wide operating range.
The TF-HSC-SS series is suitable for municipal water supply, pumping stations, industrial water systems, cooling-water circulation, irrigation, fire-water service, power-generation utilities, and other high-capacity pumping applications.
