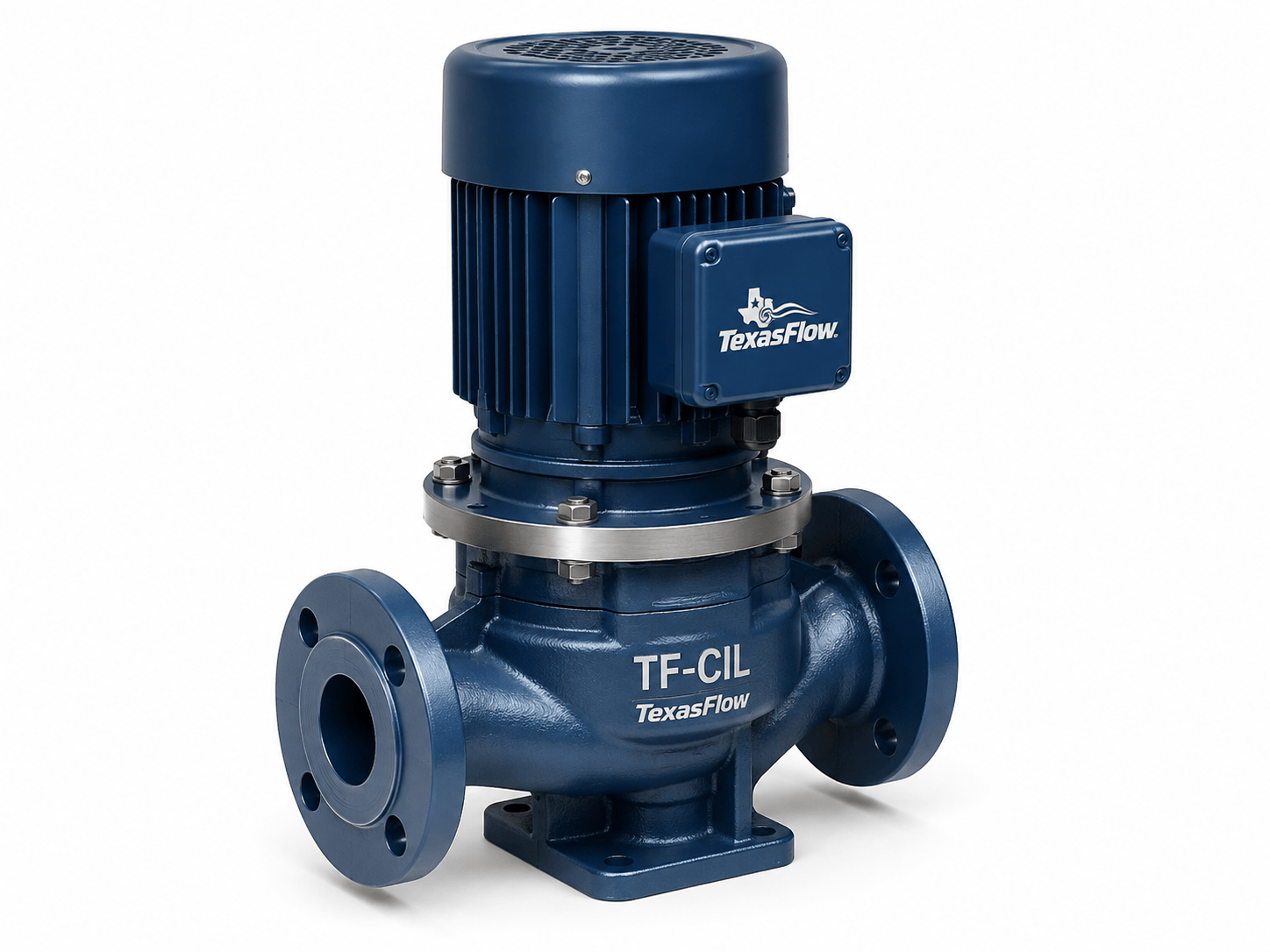

Circulators & In-Line Pumps (TF-CIL). Proposed catalog envelope: 2–1,200 m³/h (9–5,280 gpm); 2–80 m. Final selection is project-specific.
| Model | TF-CIL |
|---|---|
| Pump Type | Vertical or horizontal in-line centrifugal circulator |
| Nominal Size Range | 1 in to 12 in (DN25–DN300) |
| Flow Range | 2–1,200 m³/h (9–5,280 gpm) |
| Head | 2–80 m |
| Pressure Rating | PN10 / PN16 / PN25 |
| Temperature | -10 to 120 °C |
| Connection | Flanged / threaded on smaller models |
Casing: Cast iron / ductile iron / stainless steel; Impeller: Composite / bronze / stainless / cast iron; Shaft: Stainless steel
Final metallurgy, shaft material, wear components, elastomers and seal arrangement are selected to suit the pumped liquid, temperature, pressure and project specification.
ISO 9906; EN 1092 options; IEC motor requirements; IE3/IE4 motor options
Compliance, listing or certification applies only when specifically included in the selected model and quotation.
Documents are published when available for the selected configuration.
TF-CIL is a TexasFlow series for hvac, buildings, water applications.
Selection note: Published ranges are proposed catalog envelopes. Final model, duty point, NPSHr, motor power, pressure class, metallurgy and certification must be confirmed against approved manufacturer data.
| Size | 1 in to 12 in (DN25–DN300) |
|---|---|
| Pressure Rating | PN10 / PN16 / PN25 |
| Material | Casing: Cast iron / ductile iron / stainless steel; Impeller: Composite / bronze / stainless / cast iron; Shaft: Stainless steel |
| Standard | ISO 9906; EN 1092 options; IEC motor requirements; IE3/IE4 motor options |
| Flow Rate | 2–1, 200 m³/h (9–5, 280 gpm) |
| Head | 2–80 m |
| Connection Type | Flanged / threaded on smaller models |
| Temperature | -10 to 120 °C |
