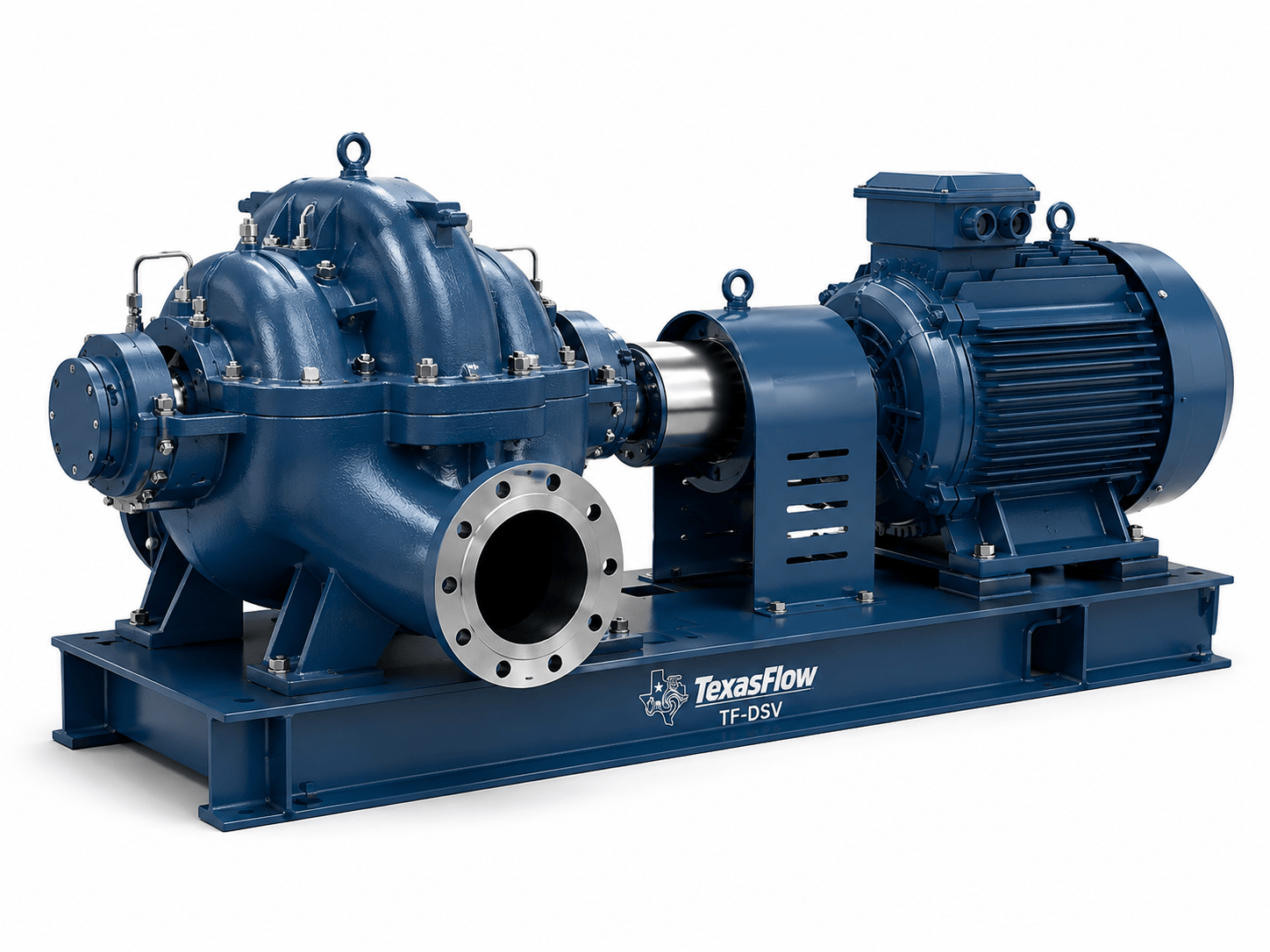

Double-Suction Volute Pumps (TF-DSV). Proposed catalog envelope: 500–30,000 m³/h (2,200–132,000 gpm); 10–250 m. Final selection is project-specific.
| Model | TF-DSV |
|---|---|
| Pump Type | Large-capacity double-suction volute centrifugal pump |
| Nominal Size Range | 6 in to 48 in typical |
| Flow Range | 500–30,000 m³/h (2,200–132,000 gpm) |
| Head | 10–250 m |
| Pressure Rating | PN10–PN25 typical; higher engineered |
| Temperature | 0 to 100 °C |
| Connection | Large flanged suction/discharge |
Casing: Cast iron / ductile iron / fabricated or cast steel; Impeller: Bronze / stainless / cast iron; Shaft: Stainless/alloy steel
Final metallurgy, shaft material, wear components, elastomers and seal arrangement are selected to suit the pumped liquid, temperature, pressure and project specification.
ISO 9906; AWWA where specified; ASME / EN flanges
Compliance, listing or certification applies only when specifically included in the selected model and quotation.
Documents are published when available for the selected configuration.
TF-DSV is a TexasFlow series for water, municipal, power applications.
Selection note: Published ranges are proposed catalog envelopes. Final model, duty point, NPSHr, motor power, pressure class, metallurgy and certification must be confirmed against approved manufacturer data.
| Size | 6 in to 48 in typical |
|---|---|
| Pressure Rating | PN10–PN25 typical; higher engineered |
| Material | Casing: Cast iron / ductile iron / fabricated or cast steel; Impeller: Bronze / stainless / cast iron; Shaft: Stainless/alloy steel |
| Standard | ISO 9906; AWWA where specified; ASME / EN flanges |
| Flow Rate | 500–30, 000 m³/h (2, 200–132, 000 gpm) |
| Head | 10–250 m |
| Connection Type | Large flanged suction/discharge |
| Temperature | 0 to 100 °C |
