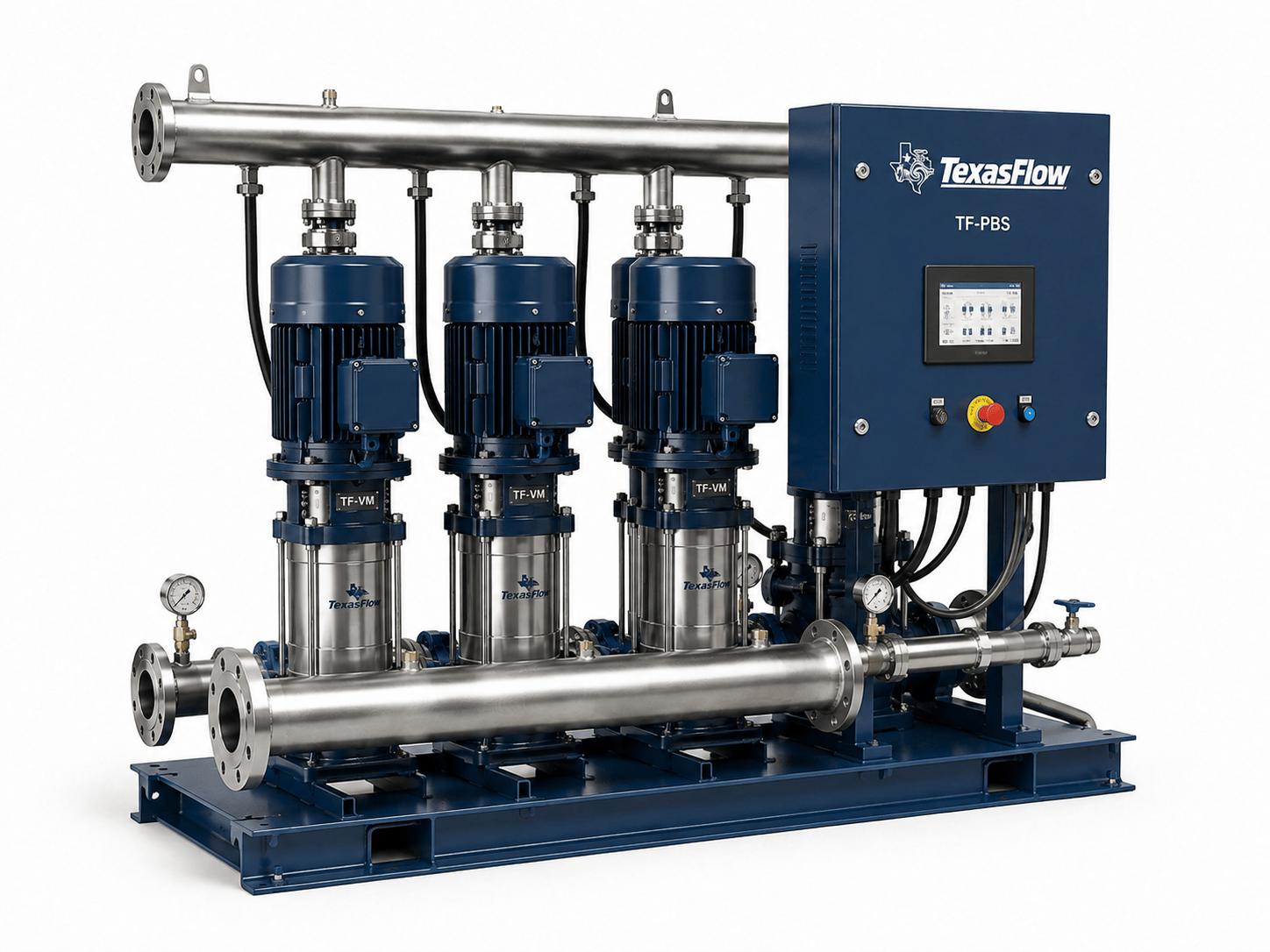

Pressure Booster Sets (TF-PBS). Proposed catalog envelope: 5–1,000 m³/h total package; 20–250 m / ~2–25 bar. Final selection is project-specific.
| Model | TF-PBS |
|---|---|
| Pump Type | Packaged constant-pressure booster set with 2–6 pumps |
| Nominal Size Range | System manifolds typically DN40–DN300 |
| Flow Range | 5–1,000 m³/h total package |
| Head | 20–250 m / ~2–25 bar |
| Pressure Rating | PN16 / PN25 / PN40 package options |
| Temperature | 0 to 80 °C |
| Connection | Flanged suction/discharge manifolds |
Casing: Stainless steel or cast iron pumps; steel/stainless manifolds; Impeller: Pump-dependent; Shaft: Stainless steel
Final metallurgy, shaft material, wear components, elastomers and seal arrangement are selected to suit the pumped liquid, temperature, pressure and project specification.
ISO 9906 pump performance; IEC motor/control requirements; Project electrical standards
Compliance, listing or certification applies only when specifically included in the selected model and quotation.
Documents are published when available for the selected configuration.
TF-PBS is a TexasFlow series for booster, buildings, municipal applications.
Selection note: Published ranges are proposed catalog envelopes. Final model, duty point, NPSHr, motor power, pressure class, metallurgy and certification must be confirmed against approved manufacturer data.
| Size | System manifolds typically DN40–DN300 |
|---|---|
| Pressure Rating | PN16 / PN25 / PN40 package options |
| Material | Casing: Stainless steel or cast iron pumps; steel/stainless manifolds; Impeller: Pump-dependent; Shaft: Stainless steel |
| Standard | ISO 9906 pump performance; IEC motor/control requirements; Project electrical standards |
| Flow Rate | 5–1, 000 m³/h total package |
| Head | 20–250 m / ~2–25 bar |
| Connection Type | Flanged suction/discharge manifolds |
| Temperature | 0 to 80 °C |
