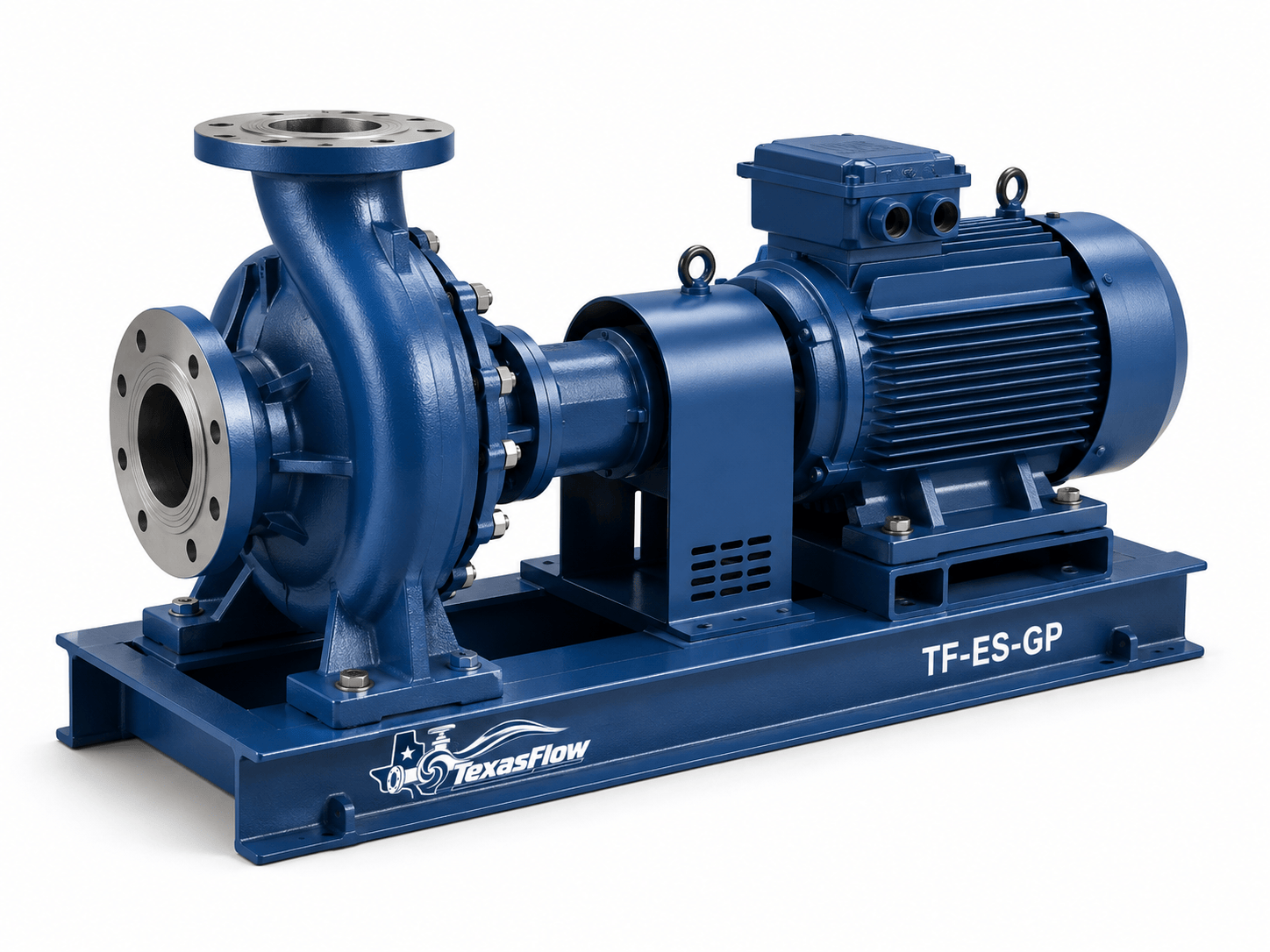

End Suction General-Purpose Pumps (TF-ES-GP). Proposed catalog envelope: 5–1,500 m³/h (22–6,600 gpm); 5–160 m. Final selection is project-specific.
| Model | TF-ES-GP |
|---|---|
| Pump Type | Horizontal end-suction, single-stage centrifugal pump |
| Nominal Size Range | 1.5 in to 12 in (DN40–DN300) |
| Flow Range | 5–1,500 m³/h (22–6,600 gpm) |
| Head | 5–160 m |
| Pressure Rating | PN16 standard; PN25 options |
| Temperature | -10 to 120 °C |
| Connection | Flanged; threaded on small models |
Casing: Cast iron / ductile iron / stainless steel; Impeller: Cast iron / bronze / stainless steel; Shaft: Stainless steel
Final metallurgy, shaft material, wear components, elastomers and seal arrangement are selected to suit the pumped liquid, temperature, pressure and project specification.
EN 733 options; ISO 2858 options; ISO 9906; EN 1092 / ASME flanges
Compliance, listing or certification applies only when specifically included in the selected model and quotation.
Documents are published when available for the selected configuration.
TF-ES-GP is a TexasFlow series for water, hvac, industrial applications.
Selection note: Published ranges are proposed catalog envelopes. Final model, duty point, NPSHr, motor power, pressure class, metallurgy and certification must be confirmed against approved manufacturer data.
| Size | 1.5 in to 12 in (DN40–DN300) |
|---|---|
| Pressure Rating | PN16 standard; PN25 options |
| Material | Casing: Cast iron / ductile iron / stainless steel; Impeller: Cast iron / bronze / stainless steel; Shaft: Stainless steel |
| Standard | EN 733 options; ISO 2858 options; ISO 9906; EN 1092 / ASME flanges |
| Flow Rate | 5–1, 500 m³/h (22–6, 600 gpm) |
| Head | 5–160 m |
| Connection Type | Flanged; threaded on small models |
| Temperature | -10 to 120 °C |
