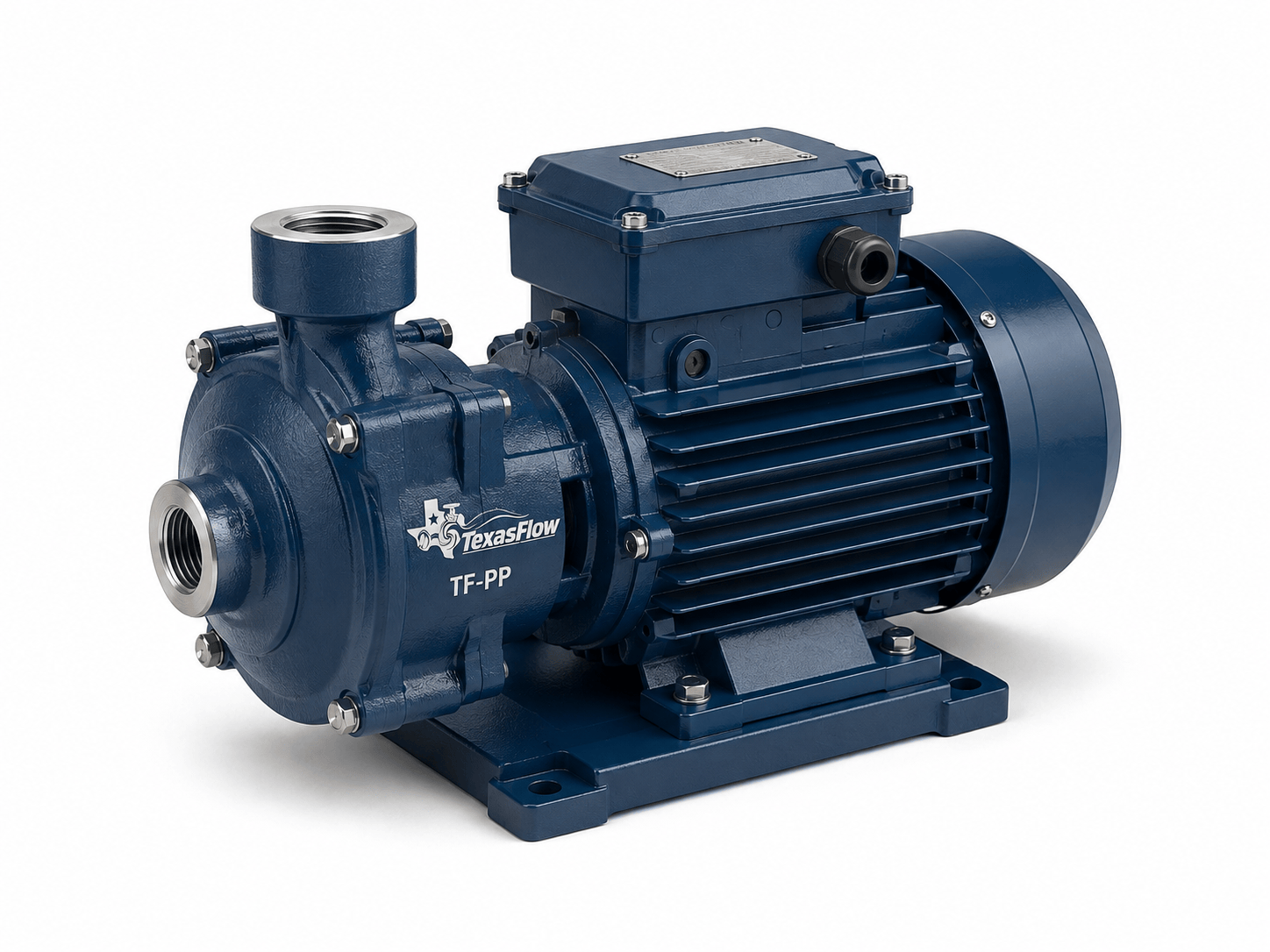

Peripheral Pumps (TF-PP). Proposed catalog envelope: 0.3–8 m³/h (1.3–35 gpm); 10–80 m. Final selection is project-specific.
| Model | TF-PP |
|---|---|
| Pump Type | Single-stage peripheral/regenerative small pump |
| Nominal Size Range | 0.5 in to 2 in |
| Flow Range | 0.3–8 m³/h (1.3–35 gpm) |
| Head | 10–80 m |
| Pressure Rating | Up to ~8 bar depending model |
| Temperature | 0 to 90 °C |
| Connection | Threaded / small flanged options |
Casing: Cast iron / bronze / stainless steel; Impeller: Brass / bronze / stainless steel; Shaft: Stainless steel
Final metallurgy, shaft material, wear components, elastomers and seal arrangement are selected to suit the pumped liquid, temperature, pressure and project specification.
IEC motor requirements; Manufacturer hydraulic testing; Model connection standards
Compliance, listing or certification applies only when specifically included in the selected model and quotation.
Documents are published when available for the selected configuration.
TF-PP is a TexasFlow series for domestic water, booster, light industrial applications.
Selection note: Published ranges are proposed catalog envelopes. Final model, duty point, NPSHr, motor power, pressure class, metallurgy and certification must be confirmed against approved manufacturer data.
| Size | 0.5 in to 2 in |
|---|---|
| Pressure Rating | Up to ~8 bar depending model |
| Material | Casing: Cast iron / bronze / stainless steel; Impeller: Brass / bronze / stainless steel; Shaft: Stainless steel |
| Standard | IEC motor requirements; Manufacturer hydraulic testing; Model connection standards |
| Flow Rate | 0.3–8 m³/h (1.3–35 gpm) |
| Head | 10–80 m |
| Connection Type | Threaded / small flanged options |
| Temperature | 0 to 90 °C |
