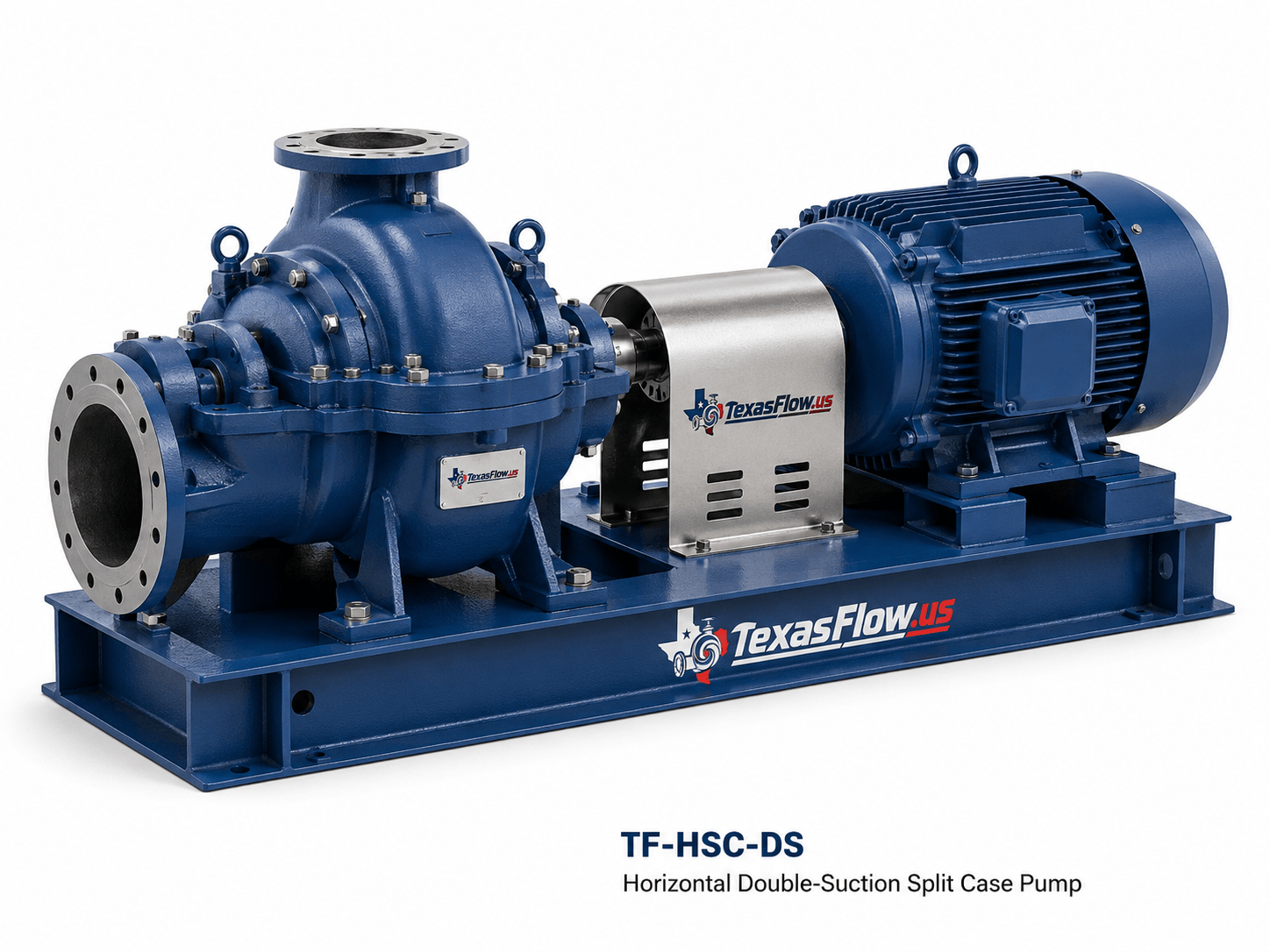

Horizontal Double-Suction Split Case Pumps — 250 to 5,000 gpm (TF-HSC-DS). Proposed catalog envelope: 250–5,000 gpm (57–1,136 m³/h); 15–200 m. Final selection is project-specific.
| Model | TF-HSC-DS |
|---|---|
| Pump Type | Horizontal split-case, single-stage, double-suction centrifugal pump |
| Nominal Size Range | 4 in to 16 in typical |
| Flow Range | 250–5,000 gpm (57–1,136 m³/h) |
| Head | 15–200 m |
| Pressure Rating | PN16 / PN25; higher by design |
| Temperature | 0 to 100 °C |
| Connection | Flanged ASME / EN / AWWA-compatible drilling |
Casing: Cast iron / ductile iron / carbon steel; Impeller: Bronze / stainless steel / cast iron; Shaft: Stainless steel
Final metallurgy, shaft material, wear components, elastomers and seal arrangement are selected to suit the pumped liquid, temperature, pressure and project specification.
ISO 9906; AWWA requirements where specified; ASME / EN flanges; NFPA 20 configuration where applicable
Compliance, listing or certification applies only when specifically included in the selected model and quotation.
Documents are published when available for the selected configuration.
TF-HSC-DS is a TexasFlow series for water, municipal, irrigation applications.
Selection note: Published ranges are proposed catalog envelopes. Final model, duty point, NPSHr, motor power, pressure class, metallurgy and certification must be confirmed against approved manufacturer data.
| Size | 4 in to 16 in typical |
|---|---|
| Pressure Rating | PN16 / PN25; higher by design |
| Material | Casing: Cast iron / ductile iron / carbon steel; Impeller: Bronze / stainless steel / cast iron; Shaft: Stainless steel |
| Standard | ISO 9906; AWWA requirements where specified; ASME / EN flanges; NFPA 20 configuration where applicable |
| Flow Rate | 250–5, 000 gpm (57–1, 136 m³/h) |
| Head | 15–200 m |
| Connection Type | Flanged ASME / EN / AWWA-compatible drilling |
| Temperature | 0 to 100 °C |
